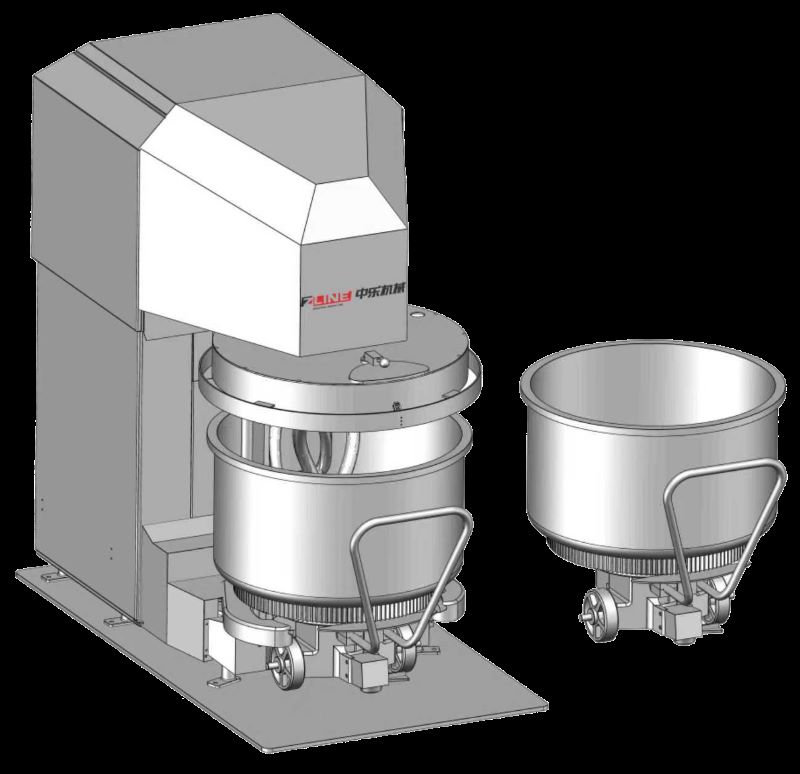

Industrial Vertical Dough Mixer

Industrial Vertical Dough Mixer



This machine features two counter-rotating figure-8 shaped kneading tools. The dough is kneaded between the two tool sets, delivering significantly higher working efficiency than conventional spiral mixers. Mixing time is shortened, so more dough is produced in less time.

Thanks to its gentle kneading action and low heat input, the system is suitable for virtually all dough types — making it especially attractive to large bakeries and industrial producers.



  • Order(MOQ) :

    1
  • Product Origin :

    China
  • Lead Time :

    1 Month+

Process Highlights

1. SPECIAL KNEADING SYSTEM:This machine features two counter-rotating figure-8 shaped kneading tools.

2. FLOOR-MOUNTED, HEAVY-DUTY DESIGN:The machine is designed as a fixed unit, permanently installed and anchored to the floor via its frame. The two figure-8 kneading tools are made of stainless steel and can be lifted out together with the mixer head for easy cleaning and maintenance.

The stainless steel bowl is removable and mounted on a mobile trolley with casters — simply roll the loaded bowl away for the next processing step (transfer, fermentation or dividing).

3. ADVANCED TOUCH CONTROL:

  • Touch panel as the operating and display unit with built-in PLC
  • Ethernet connectivity for remote monitoring of the entire control system
  • VPN tunnel and router included for secure remote access
  • Program memory for up to 120 recipes, each with up to 12 steps



Product Images





Capacity

- Max. dough per batch: 400 kg

- Max. flour per batch: 250 kg



The standard design is based on wheat flour (type 550) and a standard recipe:

- Flour absorption (ICC 115/1): 54–58%

- Dough yield (TA): 154

- Final dough temperature: >24 °C



If other flours or flour blends are used, parameters must be adjusted accordingly.

Batch size may need to be reduced for:

- Stiffer doughs (TA < 154)

- Colder doughs (< 24 °C)

- Use of additives or high water-absorption ingredients



Technical Specifications

Total power 34 kW
Motor power 30 kW
Bowl capacity 340 L
Tool speed (fast) 230 rpm
Tool speed (slow) 10 rpm
Machine weight 2,000 kg
Overall dimensions (L × W × H) 2150 × 980 × 2300 mm
Material Stainless steel kneading tools and bowl





After sales Service

1.Machine test run before delivery (FAT available)

2.English operation manual & electrical drawing provided

3.Overseas installation & commissioning support

4.Long-term spare parts supply & technical consultation







Why Choose ZLINE?

With years of experience in bakery automation solutions, ZLINE specializes in designing and manufacturing advanced bakery equipment for global customers.

From individual machines to complete automated production lines, ZLINE provides reliable equipment, customized engineering solutions, and professional technical support to help bakeries improve efficiency and product competitiveness.

ZLINE offers complete line solutions from raw material batching to depositing/molding, plus process commissioning, installation training, and remote after-sales support.
