Home Donuts / Berliner line

compact donuts and berliner forming line of 304 stainless steel

compact donuts and berliner forming line of 304 stainless steel

For prodcuing different sizes of fresh donuts and berliner dough automatically.

  • Order(MOQ) :

    1 line
  • Payment :

    T/T; L/C
  • Product Origin :

    China
  • Shipping Port :

    Shanghai port
  • Lead Time :

    90 days

Donuts production line

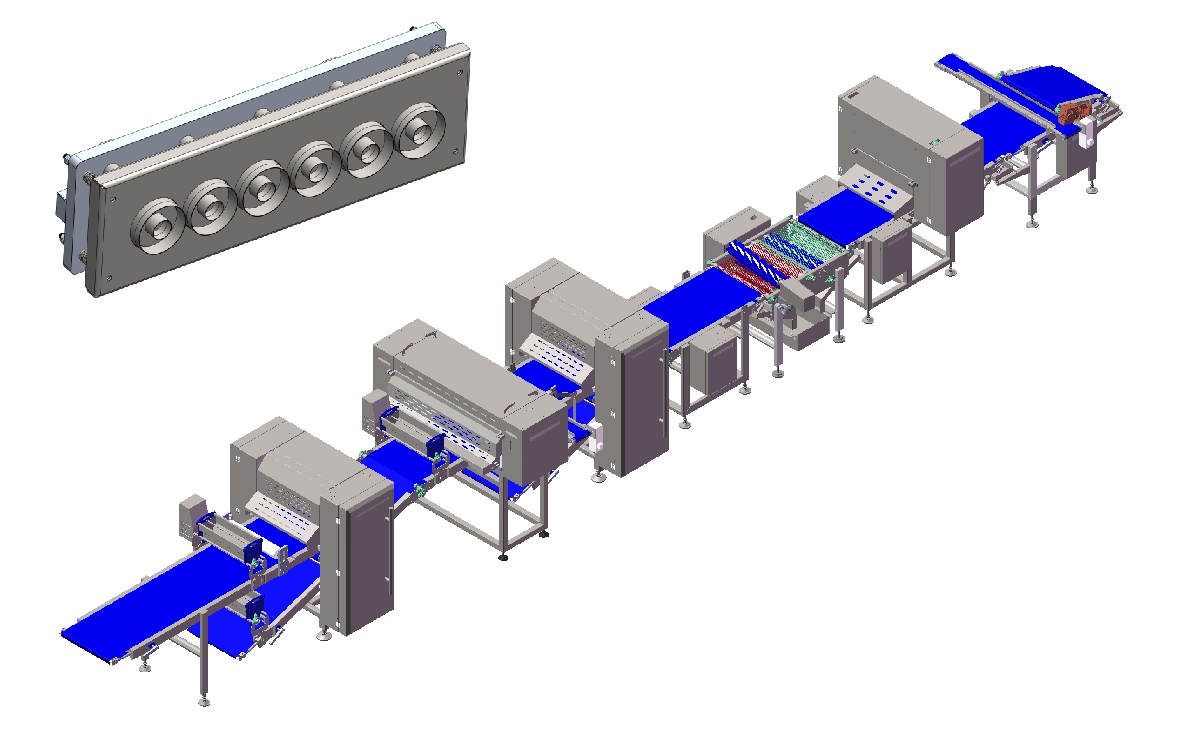

Donuts and berliner line introdution

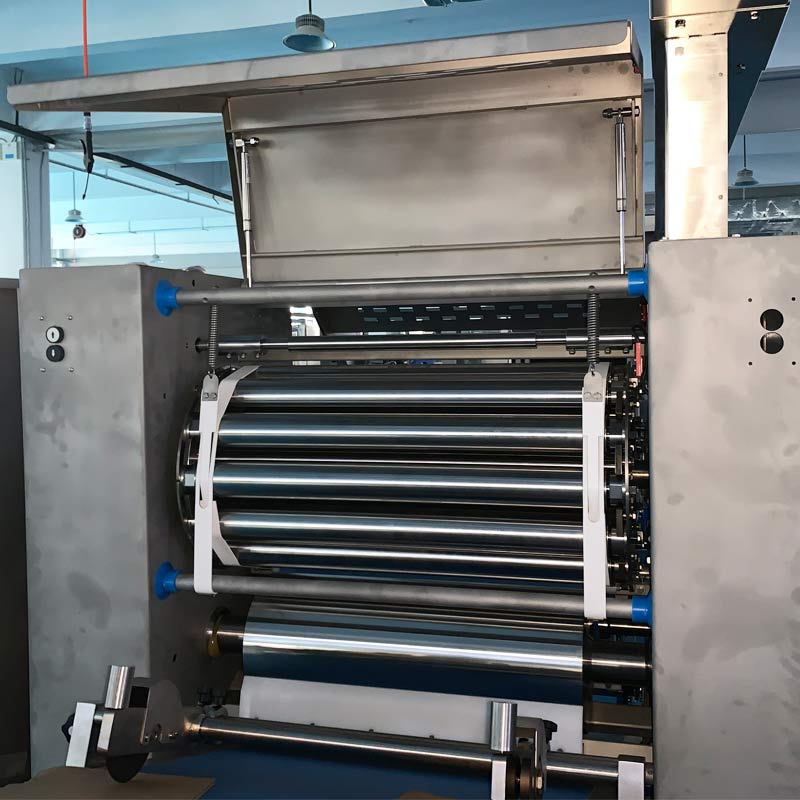

This is only a forming line for making donuts and berliner dough automatically. After dough mixer and fermentation, the dough can be put on the beginning conveyor, after thickness reduction table , a continuous dough band is formed , then the stamping cutter will punch out the donuts and berliner dough with ideal diameters and thickness. Though center dough punching machine, the core dough will be taked off automatically. Finally, the dough trimmings will be collected automatically into containers for recycling usuage and donuts &berliner will be aligned into trays automatically or be transpoerted to the proofing system , then frying , glazing, coating, cooling , freezing and packing.



 Targeted products

Donuts          Berliner

Donuts                                           Berliner

The size of donuts and berliner can be controlled by changing the cutting mold. Cutting mold is installed on the cutter frame by a hooking , easy disassembly and installation.

 Technical parameters

Line model ZLTTQ-650
Line layout method  Straight line
Dimension (L*W*H) L15.0m*W2m*H2.4m
Belt width 650mm,
Dough width 600mm,
Dough thickness 5mm-30mm
Energy consumption 17KW/380V,50HZ, 3PH ( supplied as demand)
Product size   Dia 80, 90 , or other sizes
Product weight Based on differnt sizes
Capacity Max. 1000kg/hr



Line features

1.. The production line is equipped with video monitoring equipment, which can more conveniently observe the operation of the equipment at each key stage.

2.. The equipment has a remote control system, which can observe the abnormal data of the equipment and remote optimization in the background.

3. The equipment has the function of automatically adjusting the thickness, and can realize the one-click switching of a variety of products by saving the formula.

4. Full set of stainless steel and high quality of electrical components.

5. Special design of the donuts&berliner cutter make the cutting shape be perfect enough.
