ZLINE donuts line is your right choice to manufacture donuts or berliner ina mass amount automatically . Thanks to modular design, this line can also be equipped with forming tools to prodce other frying products.
Order(MOQ) :
1 linePayment :
T/T; L/CProduct Origin :
ChinaShipping Port :
Shanghai portLead Time :
90 days

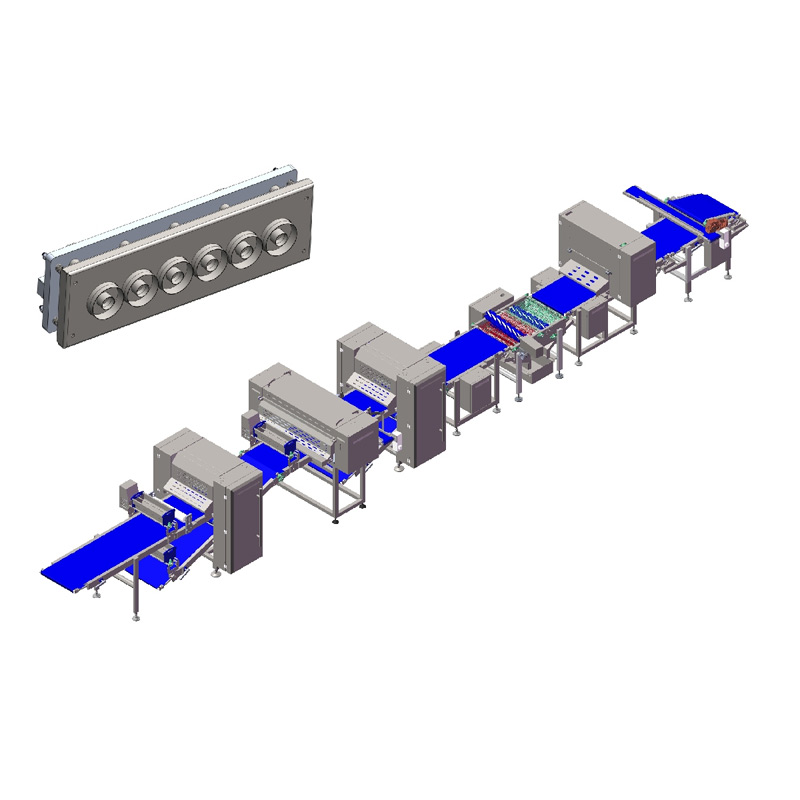

• Fresh Donuts production line

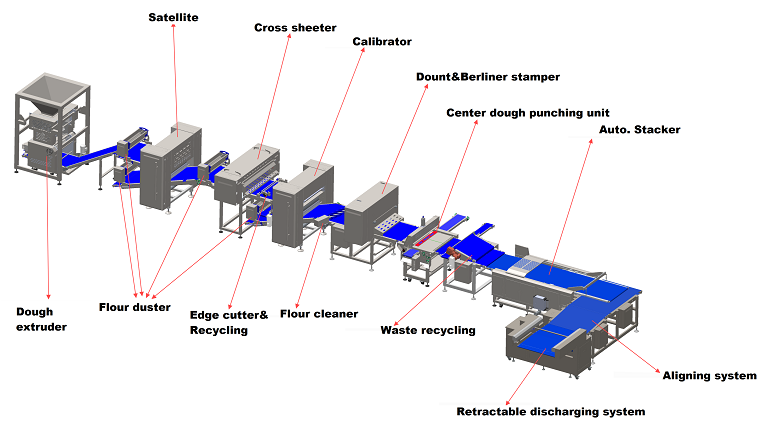

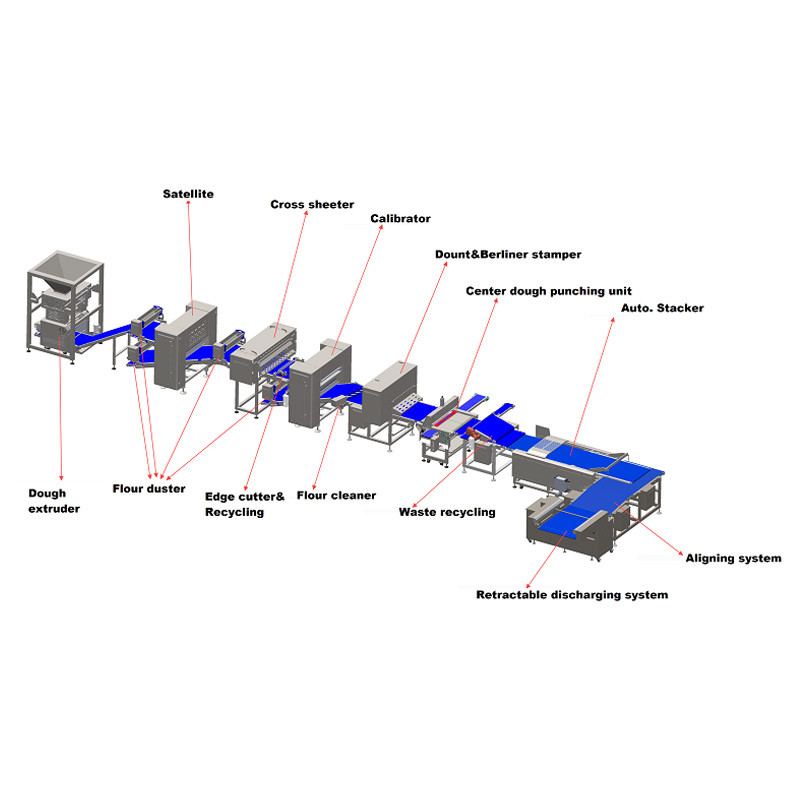

Mixed dough will be shaped into a continuous dough band with ideal width and thicknessby our dough extruder and related thickness reduction stations;
Then, this unifrom dough will be transformed to the donuts and berliner stamping cutter . Especially making donuts, the center dough will be punching off by the related mechanism.
This line will align the fresh donuts into the conveyor which is connected with the automatic proffer. By proofing, frying, cooling, injection, coating and freezing or packing. The ideal donuts are finished.
• Targeted products
Donuts Berliner
The size of donuts and berliner can be controlled by changing the cutting mold. Cutting mold is installed on the cutter frame by a hooking , easy disassembly and installation.
Other fring product can also be produced by changing the cutter mold.
• Technical parameters
| Line model | ZLTTQ-850 |
| Line layout method | Straight line |
| Dimension (L*W*H) | L17m*W5.5m*H2.4m |
| Belt width | 850mm, |
| Dough width | 800mm, |
| Donuts Dia. | ￠50 -￠ 90mm |
| Energy consumption | 30KW/380V,50HZ, 3PH ( supplied as demand) |
| Dough thickness | 3-20mm |
| Linear speed | 1.5m/fen-5.5m/min |
| Capacity | Max. 1000kg/hr |
• FAQ

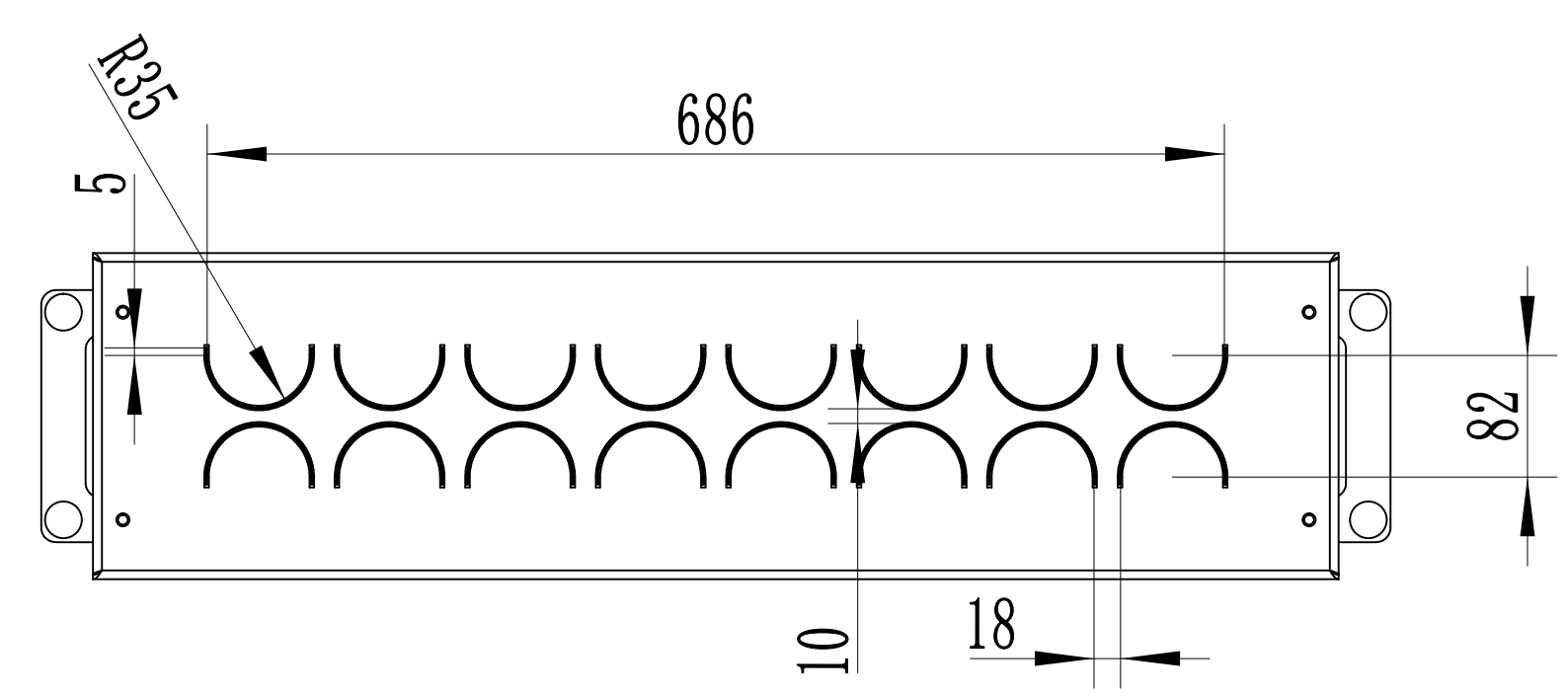

1. How does the donuts stamping cutter look like?
2. How this line will be used ?
For industrial production, normally this line is connected with automatic proofing , frying , cooling, filling and coating, freezing , packing.
3. Is the donuts cutter difficult to be taken out and changed for other size
Yes. The cutter is fixed by a hook . totally weight only about 15 KG. One man is okay.
4. Before shipping, will factory give some suggestions about the spare parts?
Yes, we will offer the spare parts list and the fragile partsn for customer to prpeare some oen for stock .
5. Whci port the line will be delivered from?
Shanghai port. Near to our factory.
For prodcuing different sizes of fresh donuts and berliner dough automatically.
Details
ZLINE donuts line is your right choice to manufacture donuts or berliner ina mass amount automatically . Thanks to modular design, this line can also be equipped with forming tools to prodce other frying products.
Details
