800kg/hr Cake batter aeration machine for whole egg mixing

• Machine introduction

This series machine is suitable for sponge cake production which needs to blend the whole egg. Thanks to the advanced technology, this machine will finish the processing of raw materials mixing, storage and aeration automatically, then transporting the cake batter into the cake depositor.

Full set of 304 stainless steel and CIP cleaning system ;

By increasing mixing tanks and using bigger aeration head, this system can also produce cake batter of 1200 kg per hour;

High automation: if the output is adjusted in the production process, only one parameter of screw pump flow needs to be adjusted, and other parameters do not need to be changed;

• Process flow

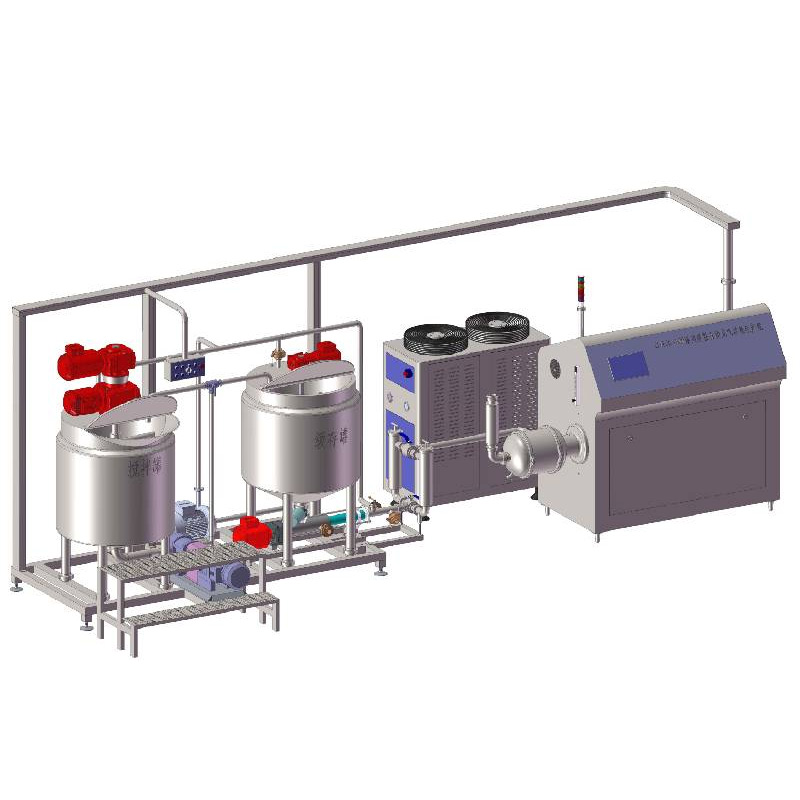

Pre-mixing tank - Rotor pump - Storage tank - Screw pump - Filter - Aeration - Cake depositor - Tunnel oven

• Technical parameters

• What is the competitiveness of equipment compared to peers?

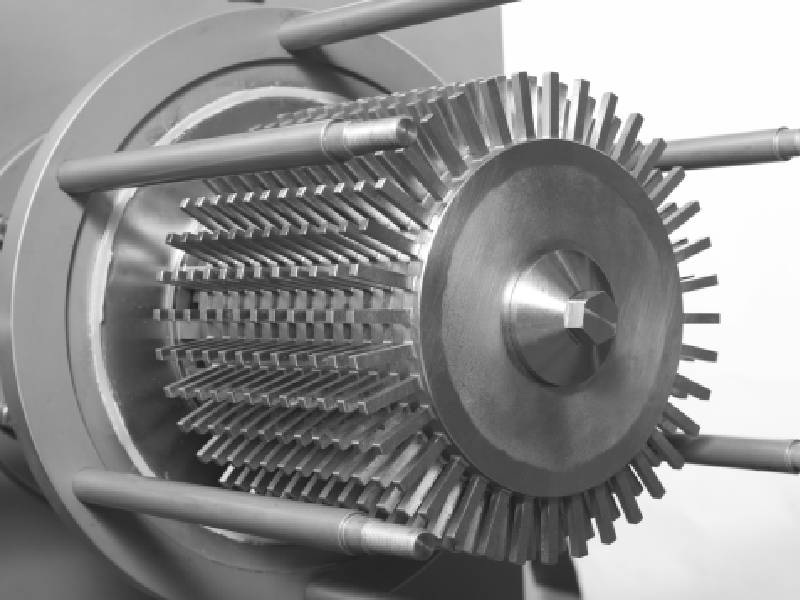

1. All parts of the aeration head are processed using the Japanese Mazak CNC machining center and the Japanese Satik slow wire processing. The finish and dimensional accuracy of the parts are very high;

2. The spindle material inside the aeration head is made of aviation stainless steel material. The strength is high and the runout is small, which greatly improves the noise and jitter of the head in the actual production process and extends the service life of the mechanical seal inside the head to a great extent;

3. The whole machine assembly of the head is assembled in the dust-free constant temperature workshop. The hot and cold loading process is adopted in the assembly process, which greatly improves the stability of the head;

4. The equipment protection device is complete: such as the screw pump with liquid level detection protection device; once the screw pump is out of material, the detection switch will immediately close the system after detection, which will not lead to dry grinding damage to the screw pump; and if the pressurized rubber sleeve is broken, the slurry in the pipeline will be directly discharged outside the equipment, and will not flow back to the electrical box to cause damage to the electrical parts;

5. The tank and the pump body are fixed to the base. Cleaning and hygiene will be convenient;  With CIP Cleaning system.

6. High configuration, stable inflation and feeding in the process of aeration, so as to ensure stable product quality. Strong durability, low failure rate, simple operation and high production efficiency, which can be operated by one person. High cost performance.
